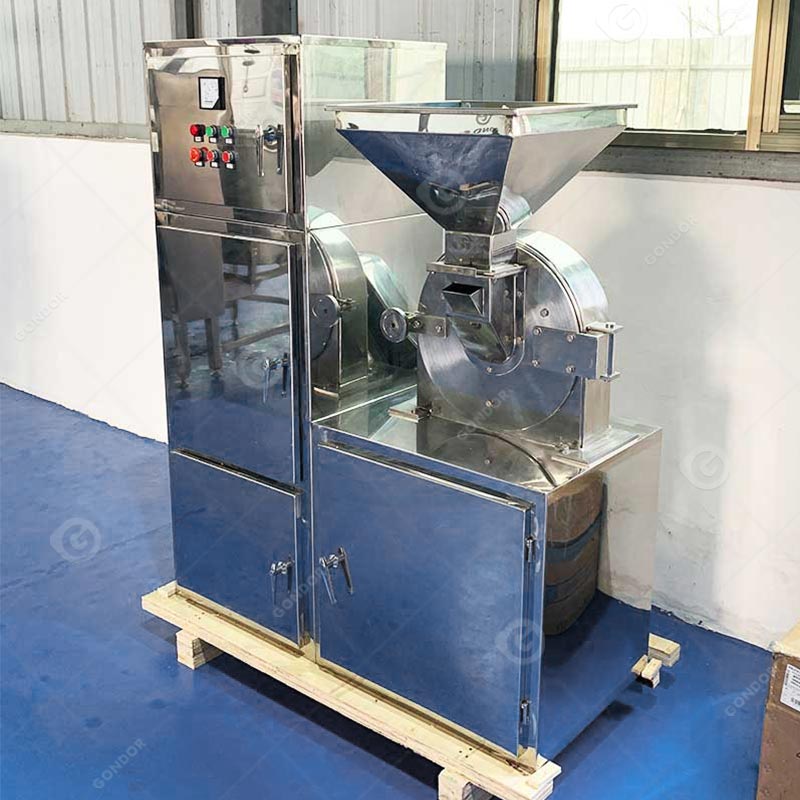

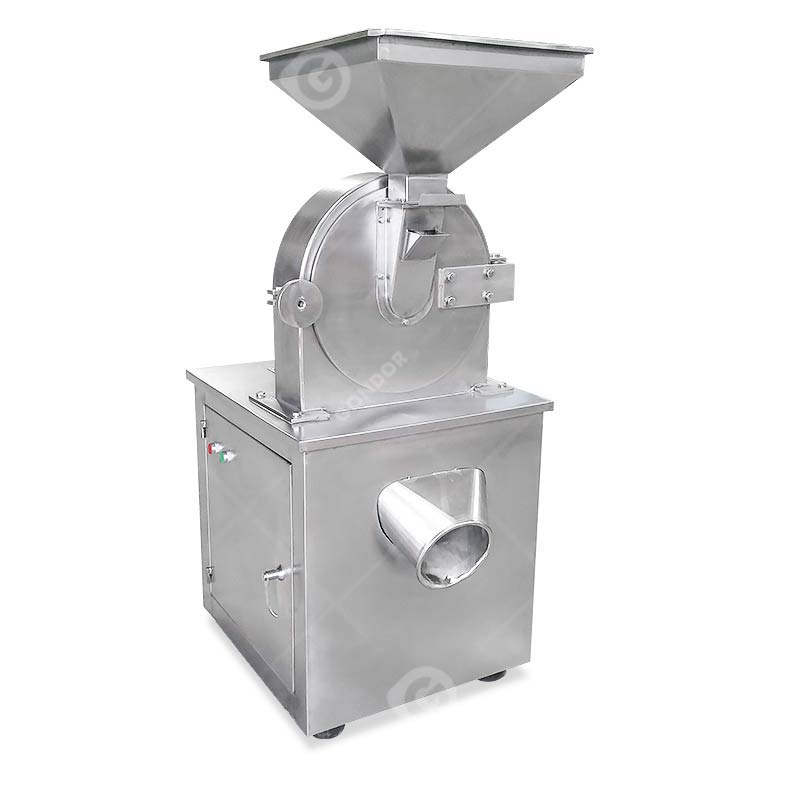

Professional Crushing: Cocoa Powder Grinding Machine

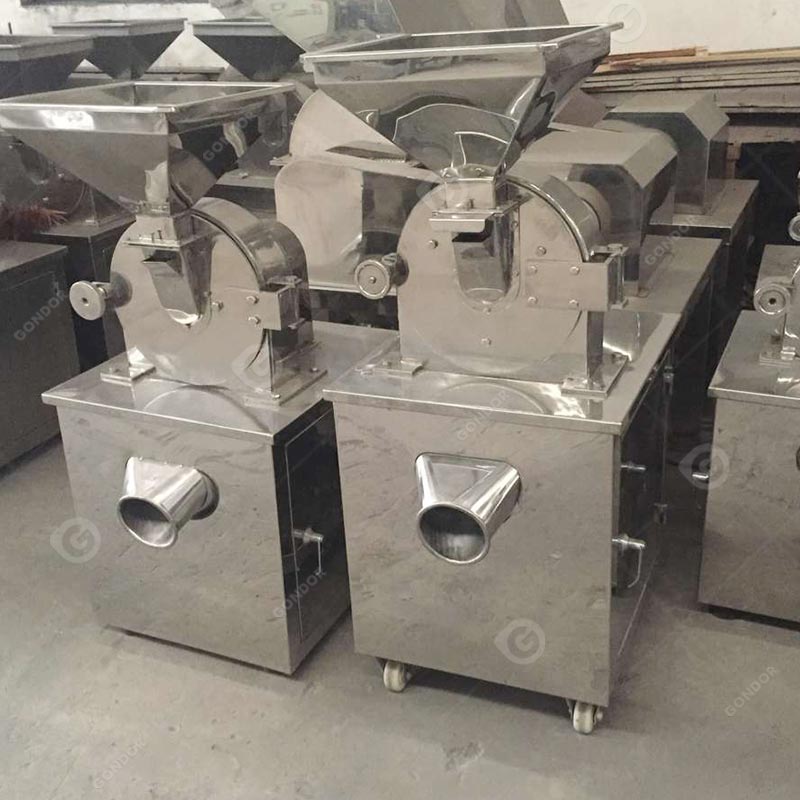

In the food, chemical industry, agriculture, and other industries, the crushing demand for dry brittle materials is increasing. Our cocoa powder machine is a universal mill with high efficiency, precision, and low noise, specially designed to meet this kind of demand. It realizes the impact, shearing, and friction crushing of materials through the high-speed relative motion of movable and fixed toothed discs. The whole machine is made of stainless steel, which meets GMP standards, with a neat appearance and convenient cleaning. The screen can be replaced to adjust the fineness of powder, and it is equipped with a cold water circulation system to effectively control the temperature and protect raw materials, so as to ensure the long-term stable operation of the equipment.
| Model | Capacity
(kg/h) |
Feed particle size(mm) | Crushing fineness(mesh) | Motor Power (kw) |
Spindle speed (r/min) |
Dimension (mm) |
Weight (kg) |
| 15B | 20-150 | <10 | 20-120 | 2.2 | 6000 | 550*400*850 | 150 |
| 20B | 40-200 | <10 | 20-120 | 4 | 4500 | 600*550*1250 | 280 |
| 30B | 80-400 | < 12 | 20-120 | 7.5 | 3800 | 700*600*1450 | 340 |
| 40B | 100-800 | < 15 | 20-120 | 11 | 3400 | 900*800*1550 | 450 |
| 50B | 150-1000 | <18 | 20-120 | 15 | 3000 | 1050*850*1750 | 600 |
| 60B | 250-1500 | < 20 | 20-120 | 22 | 2800 | 1100*900*1880 | 900 |
| 80B | 350-2000 | < 25 | 20-120 | 30 | 2400 | 1200*950*2000 | 1250 |
| 100B | 500-3000 | < 28 | 20-120 | 37 | 2000 | 1350*1000*2100 | 1580 |
Wide Application of Cocoa Powder Grinding Machine

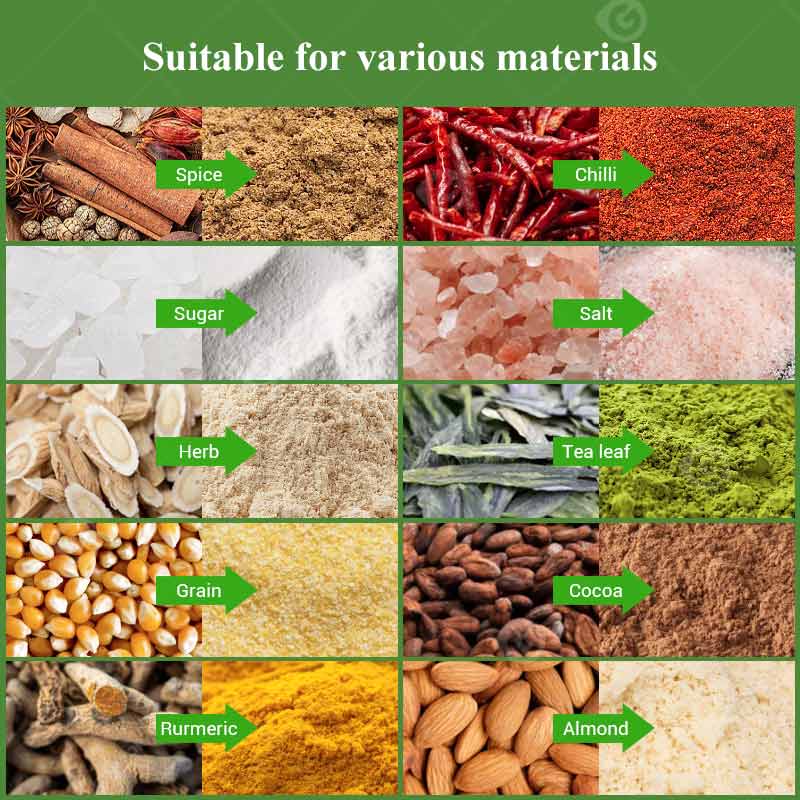

This cocoa powder grinding machine is not only suitable for cocoa powder processing, but also widely used in:
Excellent Features of Cocoa Powder Processing Machine

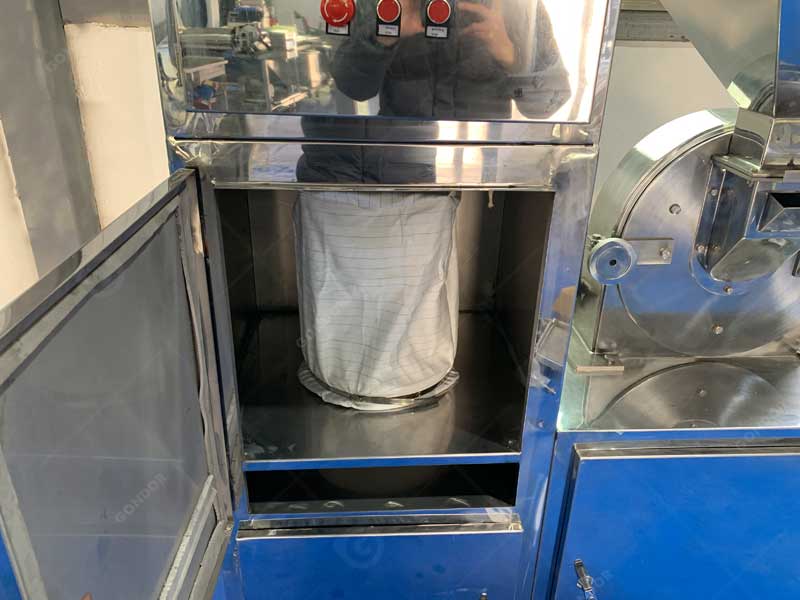

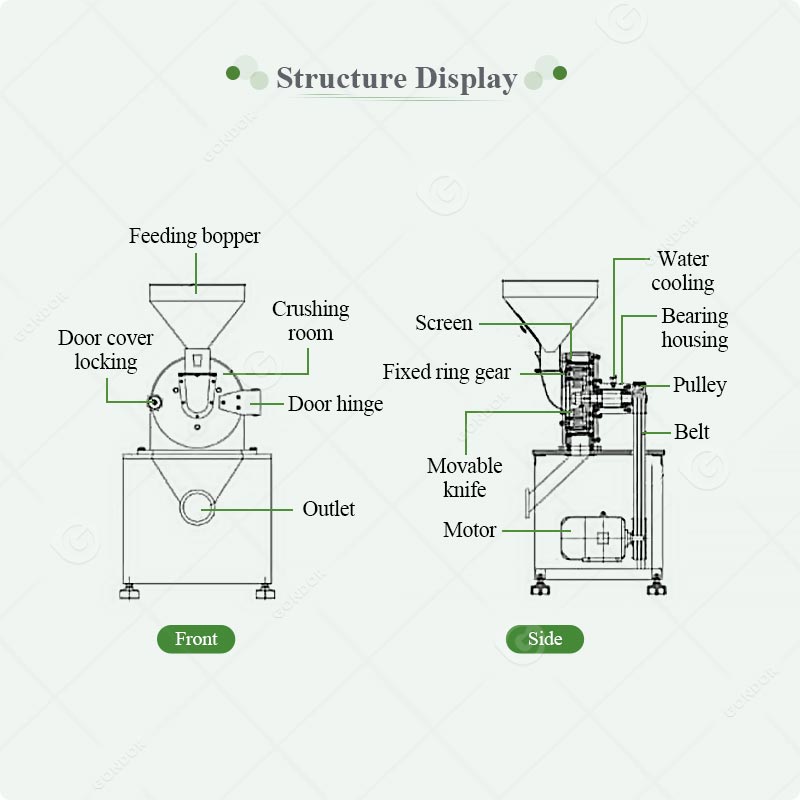

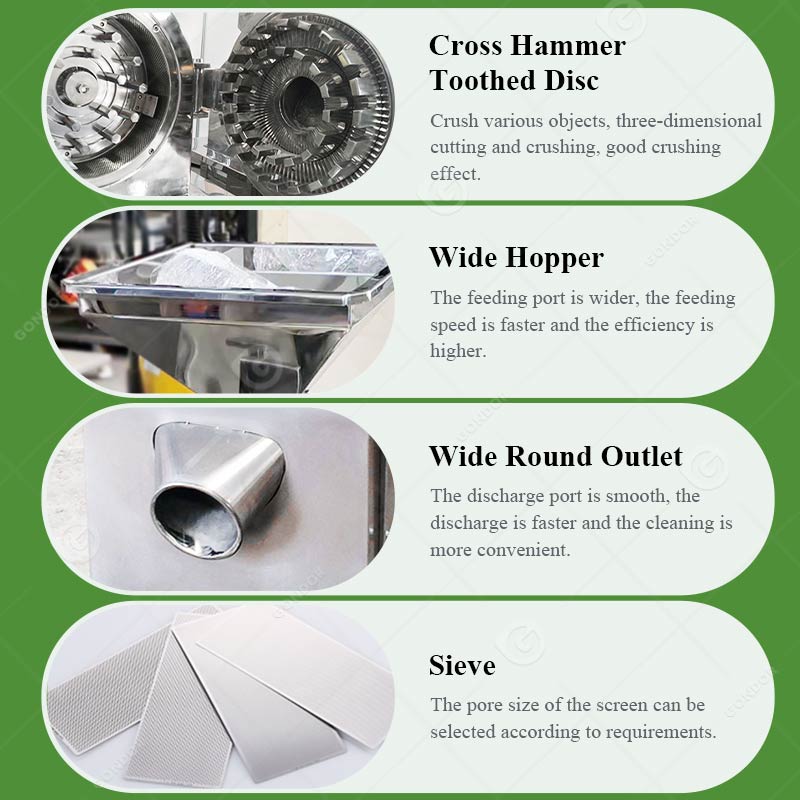

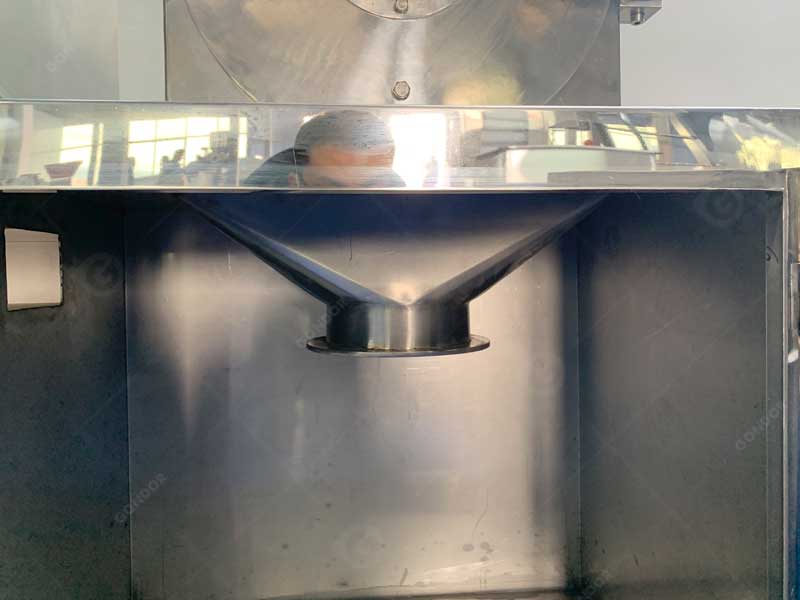

Design Details That Matter
Related Machines You May Also Like
To meet the diversified processing needs of different industries, we also provide the following supporting equipment to create a full-process crushing solution:
- Coarse Crusher: It is suitable for pre-crushing large pieces of material.
- Mixing Machine: Used for uniform mixing of powder.
- Vibrating Sieve: Grading and screening powders with different particle sizes.
- Packing Machine: Realize automatic packaging and improve efficiency.
An In-Depth Look at the Grinding Mechanism

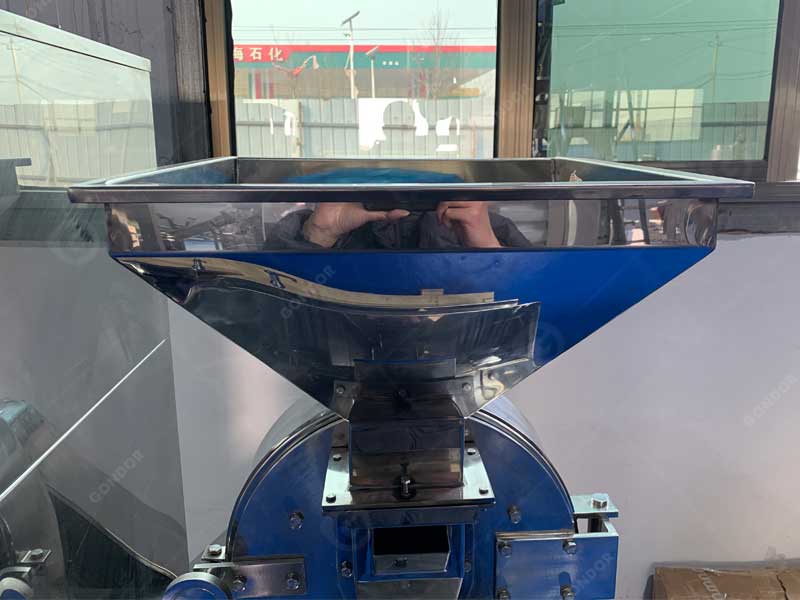

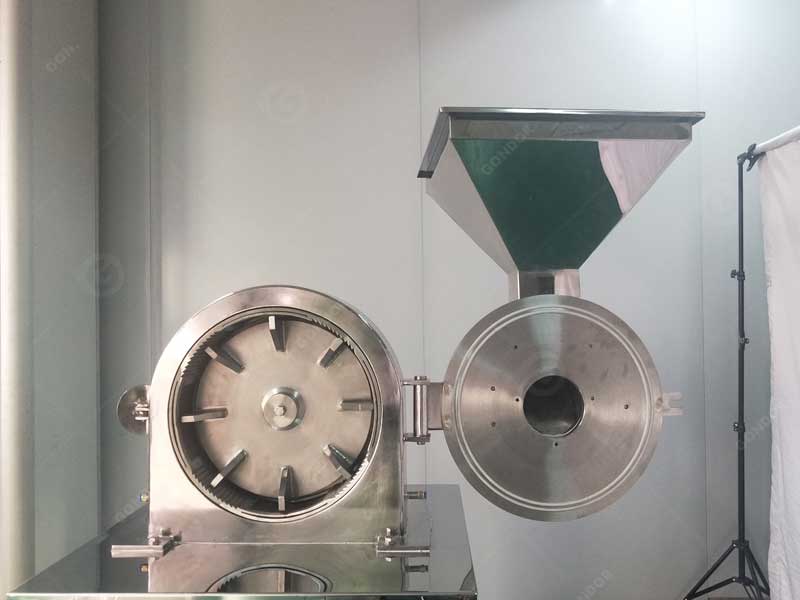

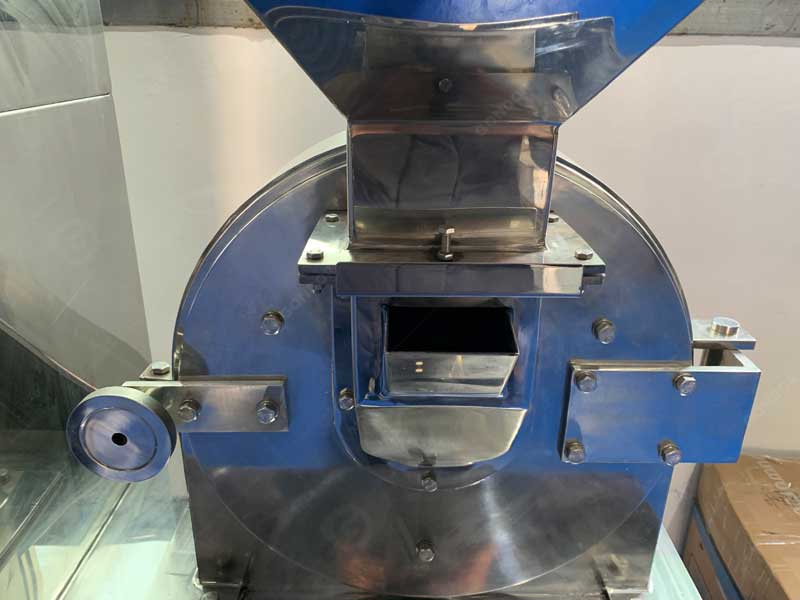

Different from the traditional grinding machine that relies on single pressure, our cocoa powder grinder machine adopts the more advanced principle of “compound shear grinding”. When the material enters the crushing cavity from the wide-mouth hopper, it is first pre-dispersed by the strong airflow generated by the high-speed rotating movable toothed disc and the fixed toothed disc, so as to ensure that the material enters the grinding area evenly. Subsequently, in the tiny gap between the movable toothed disc and the fixed toothed disc, the material is not crushed at one time, but undergoes multiple and multidimensional impacts, shearing and high-speed friction. This dynamic process is like three-dimensional cutting of materials with countless miniature precision scissors, which can effectively crush materials to the target fineness, and at the same time effectively avoid heat accumulation caused by excessive extrusion, thus laying a solid foundation for low-temperature grinding at the source.
Clear Advantages Over Traditional Mills
To give you a more intuitive understanding of the superiority of this equipment, please refer to the comparison with traditional grinding equipment:
| Characteristics | Gondor Cocoa Grinder | Traditional Hammer Mill | Traditional Stone Mill |
| Crushing Efficiency | High (3D Cutting) | Medium-High (Primarily Impact) | Low |
| Particle Size Uniformity | Excellent (Controllable Screen Mesh) | General (Wide Particle Size Distribution) | Excellent |
| Temperature Rise Control | Excellent (Water-Cooling System) | Poor (Limited Air Cooling Effect) | Low |
| Noise Level | Low (<75 decibels) | High (Typically >85 Decibels) | Low |
| Ease of Cleaning | Excellent (All stainless steel, detachable) | Difficulty (Complex Structure) | Difficulty |
| Applicability | Wide Range (Various Dry Materials) | Limitations (Poor Performance with Tough Materials) | Limitations |
Frequently Asked Questions about Cocoa Powder Machine
-
-
- The screen replacement design is exceptionally user-friendly, typically requiring only the opening of a quick-release clamp for operation without any special tools. To precisely control fineness, we offer multiple standard screen specifications for selection and can customize screens to meet your specific requirements. Our technical team will recommend the most suitable screen specifications based on your target material.
-
- We provide global warranty coverage. Each device ships with detailed operating manuals and video guides. We offer online remote technical support and guarantee prompt response when needed. A well-stocked spare parts inventory ensures the timely delivery of required repair components.
Is replacing the screen complicated? How precisely can the fineness range be controlled?
How is after-sales service and support ensured?
