Chocolate Production Cocoa Crushing Equipment
In chocolate production, the cocoa crusher is an indispensable key primary equipment. It is mainly used for crushing roasted cocoa beans to obtain high-quality cocoa granules, which lays a solid foundation for subsequent grinding, blending, and refining processes.

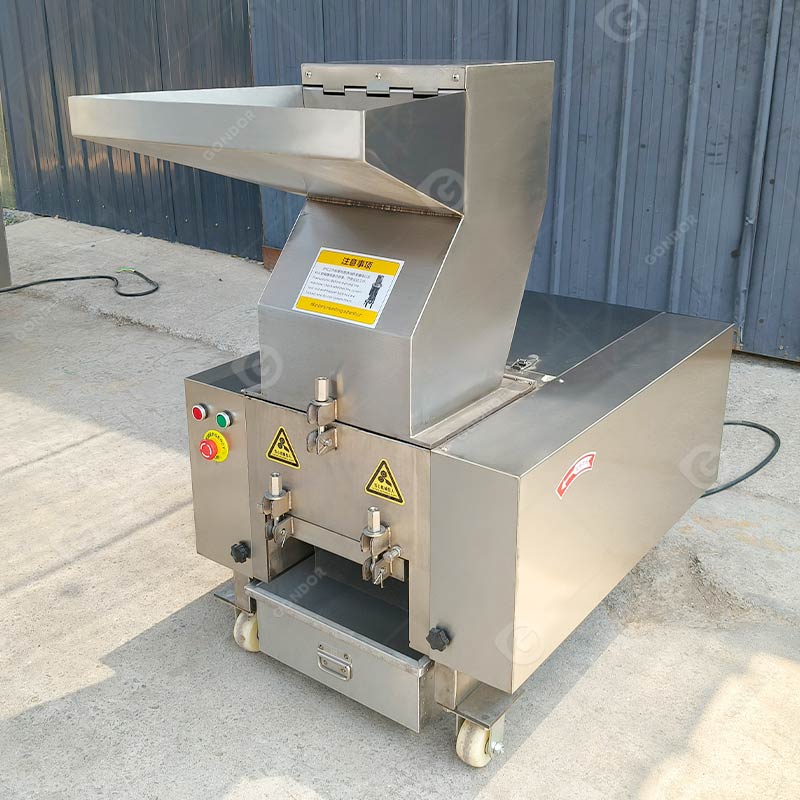

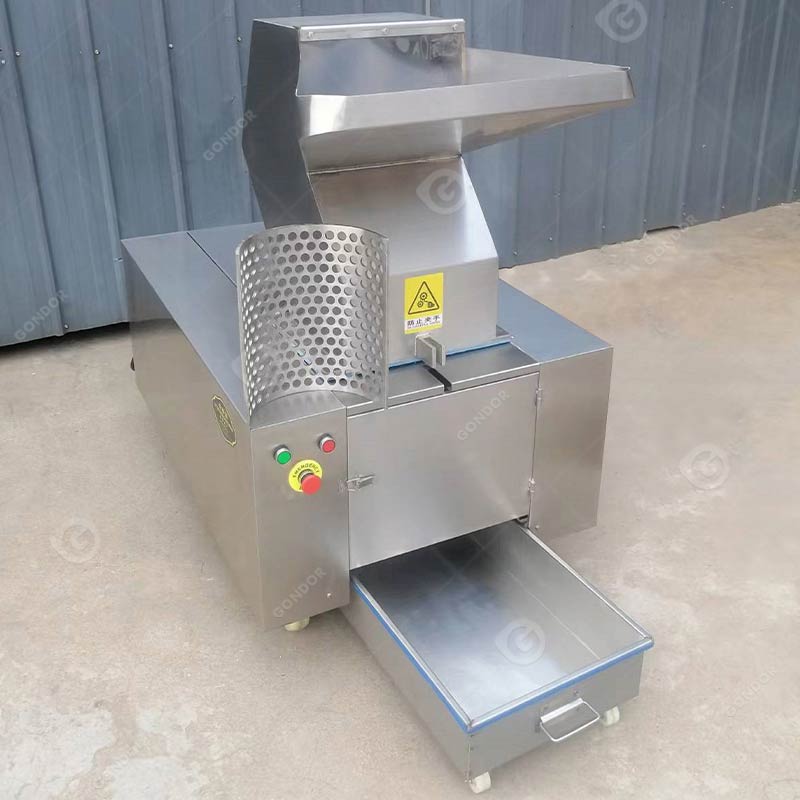

Cocoa Crusher Machine
This equipment is specially designed to meet the production needs of different scales. Whether you are an individual operator or a food processing factory, you can find the ideal balance between high cost and reliable performance in this machine.
- Compact size.

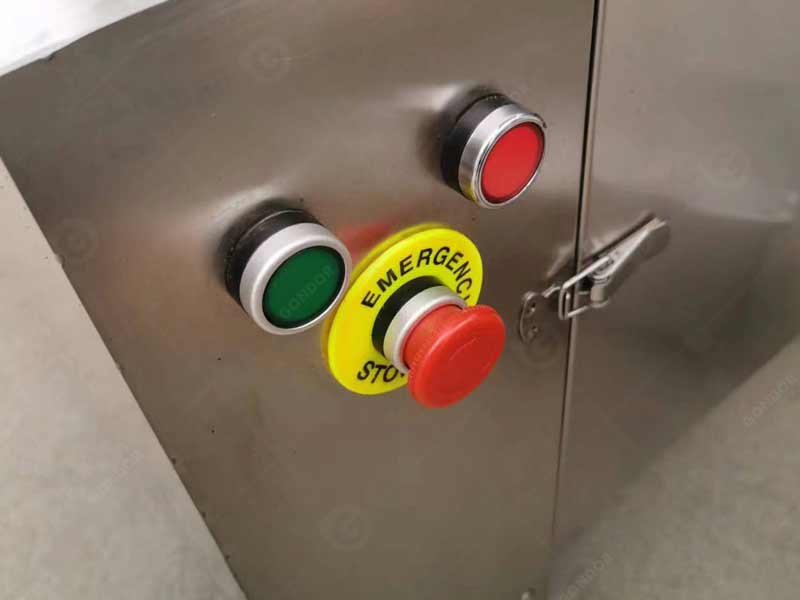

- Easy to operate.
- Evenly crushes without leaving any oil residue.
Gondor Cocoa Crusher Materials
The cocoa crusher machine is made of all 304 stainless steel, which is durable, conforms to international food safety standards, has strong corrosion resistance, and is easy to clean and maintain. It is professional-grade equipment integrating beauty, practicality, and safety.

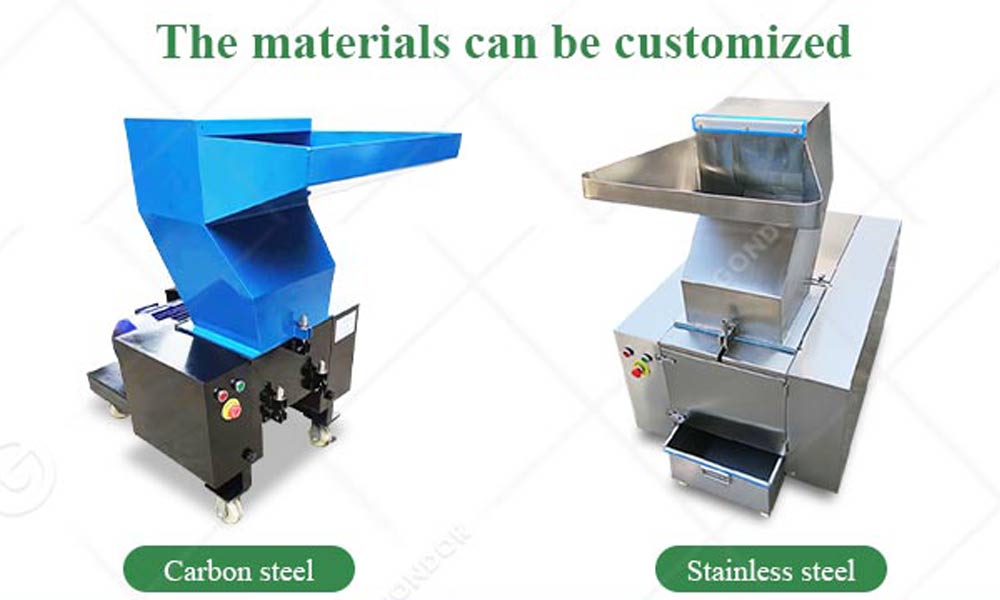

The cocoa crusher machine can be customized. We offer two material types: carbon steel cocoa crusher and stainless steel cocoa crusher.
Cocoa Crusher For Sale
As a professional cocoa crusher supplier, Gondor Machinery offers cocoa crushers of various specifications. Below are some common specifications for your reference.
| Cocoa Crusher Specification | |||||||
| Model | 180 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Feed size(mm) | 180*190 | 310*210 | 420*230 | 520*250 | 620*320 | 820*650 | 1100*800 |
| Material handling dimensions(mm) | 4-30 | 4-50 | |||||
| Yield(kg/h) | 20-60 | 80-200 | 150-400 | 200-600 | 300-900 | 800-2500 | 1000-4000 |
| Power(kw) | 3 | 5.5 | 7.5 | 11 | 15 | 30 | 45 |
| Voltage(v) | 380 | ||||||
| Weight(kg) | 160 | 340 | 420 | 600 | 800 | 2000 | 3800 |
| Screen aperture(mm) | 5-50 | 5-80 | 5-100 | ||||
Application Scope of Cocoa Bean Crusher
This equipment is widely used in:
- Chocolate Production Lines
- Cocoa Processing Plants
- Boutique Chocolate Workshops
- Agricultural Products Deep Processing
How does a cocoa crusher work?
The core task of a cocoa crusher is to convert whole cocoa beans into “nibs” or “cocoa liquor,” paving the way for subsequent grinding or chocolate making.
This process involves four steps.
1. Feeding and Preparation
Pure cocoa kernels, roasted and with most of their shells removed, are fed into the crusher’s feed hopper. These raw materials are dry, brittle solid particles.
2. Impact Crushing

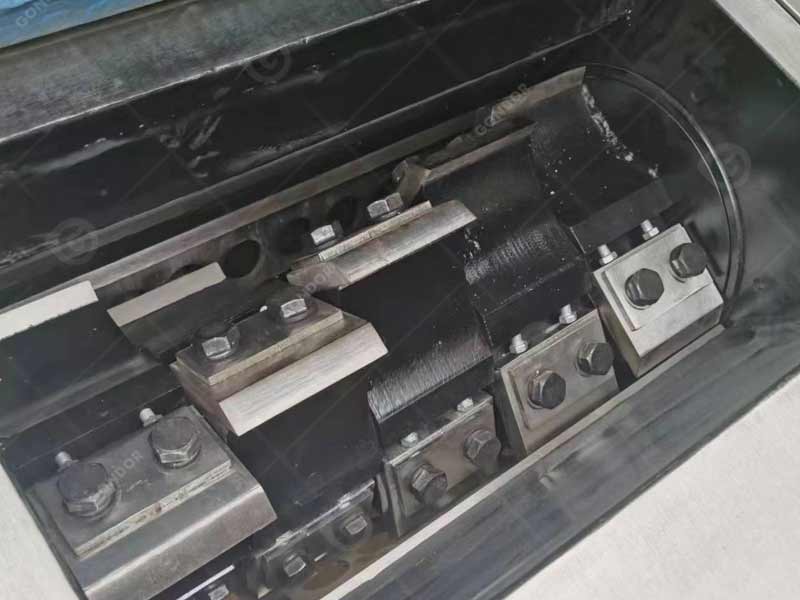

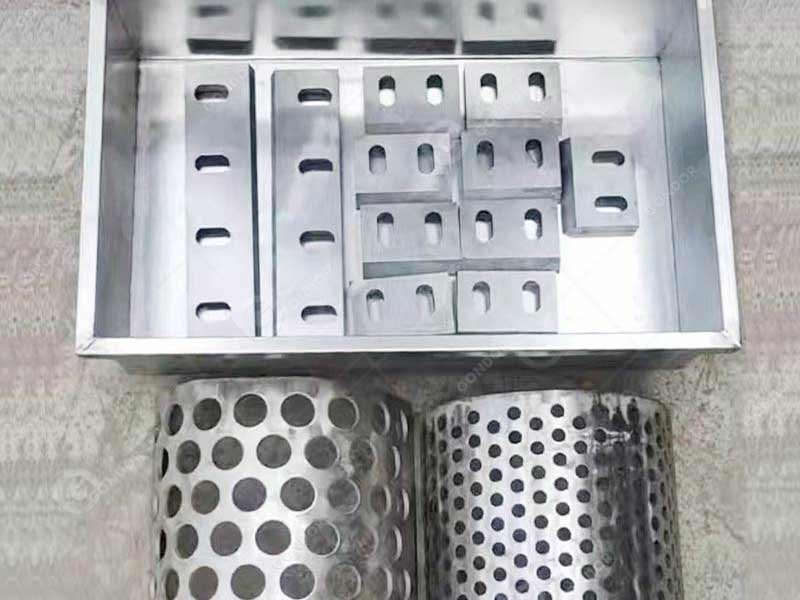

A high-speed rotor equipped with hammers or hammers instantly cracks the roasted cocoa beans, removing the shells and transforming the beans into 2-4 mm “cocoa nibs.”
3. Grinding
The movable and fixed grinding discs rotate at high speeds in opposite directions, causing shearing, friction, and collision between the cocoa beans. The gaps between the cocoa beans decrease as they move outward, and the particles are ground into “cocoa liquor” with a size of less than 20 µm.
4. Cooling and Discharging
Cold water or air is passed through the outer wall of the grinding chamber to dissipate frictional heat and prevent the cocoa butter from overheating and clumping, which can cause sticking to the machine. The ground cocoa powder is then sieved through sieves of varying mesh sizes to obtain cocoa powder that meets product specifications.
Functional Highlights of Cocoa Powder Grinding Machine
Who is a cocoa crusher suitable for?
From chocolate manufacturers turning cocoa beans into chocolate bars to small-scale producers and startups looking to improve efficiency without increasing manual labor, a cocoa crusher can be used as long as the raw materials contain cocoa or require ultrafine powder/paste.
- Chocolate and Candy Factories: Grinding roasted beans into cocoa paste, which is then directly refined into chocolate, is the first step in the production line.
- Cocoa Powder/Instant Beverage Factories: To make bagged cocoa powder, three-in-one hot chocolate, and solid beverages, the beans must first be ground into an ultrafine powder of 20-30 µm to prevent clumping.
- Dairy and Cold Beverage Companies: Cocoa powder, used as a flavoring ingredient in milk, ice cream, and milk tea bases, requires crushing, sterilization, and mixing.
- Baked Goods and Snack Foods: The “cocoa flavor” in cookies, cakes, energy bars, and coated cereals comes from the fine powder or cocoa paste produced by the crusher.
- Health products： High-antioxidant cocoa polyphenol powder, meal replacement shakes, and protein powders require low-temperature ultrafine grinding to preserve active ingredients.
- Pharmaceuticals and cosmetics: Cocoa butter paste, cocoa polyphenol capsules, and natural color powders for lipsticks and skincare products all use ground, defatted cocoa powder.
- Contract Manufacturing and R&D Labs: Small-batch 2-5 kg pilot machines provide rapid raw material production for new product prototyping and formula verification.
More Cocoa Processing Equipment Recommendations
In addition to this cocoa crusher, we also provide a complete set of cocoa processing equipment, including:
- Cocoa Bean Winnower
- Chocolate Melanger Machine
- Cocoa Butter Extraction Machine
FAQs of Cocoa Crusher Machine
- Gondor Machinery’s cocoa bean crushers offer exceptional precision, crushing the beans before grinding them to a very fine consistency, meeting the needs of a variety of applications.
- Production-grade cocoa crushers can operate continuously for 7 days, stopping every 2–3 months for maintenance; small, laboratory-grade machines can operate continuously for up to 48 hours.
- Cocoa crushers come in various types, including small and large models, suitable for both small-scale and large-scale production.
How finely can the crushed cocoa beans used to make chocolate be crushed?
How long can a cocoa bean crusher last?
Can a cocoa crusher be used for large-scale production?
If you are interested in this product or want to know more about cocoa processing solutions, please contact us immediately, and we will provide you with professional, customized service and quality after-sales support.
