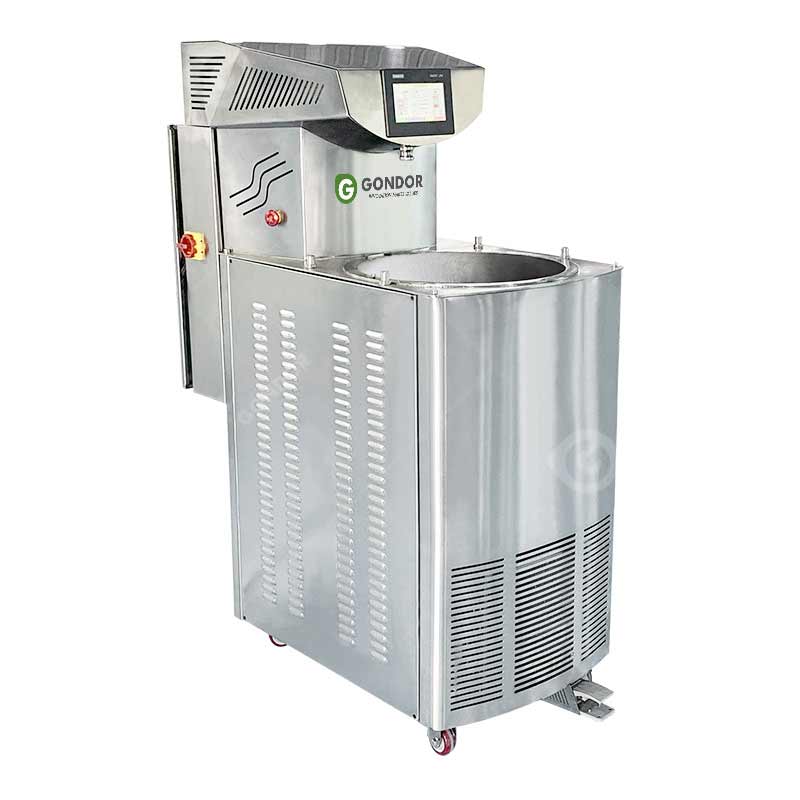

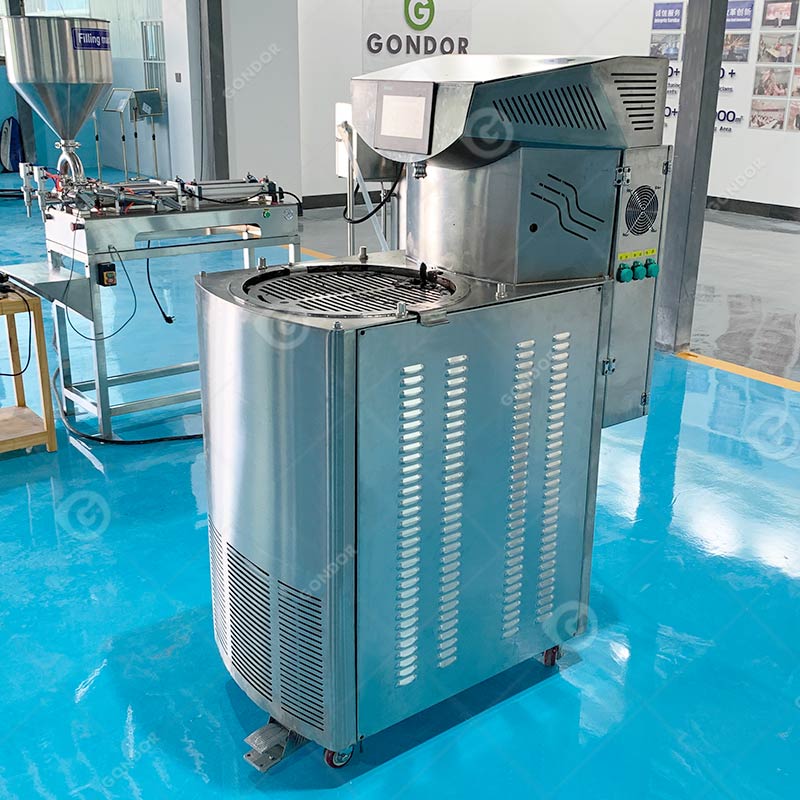

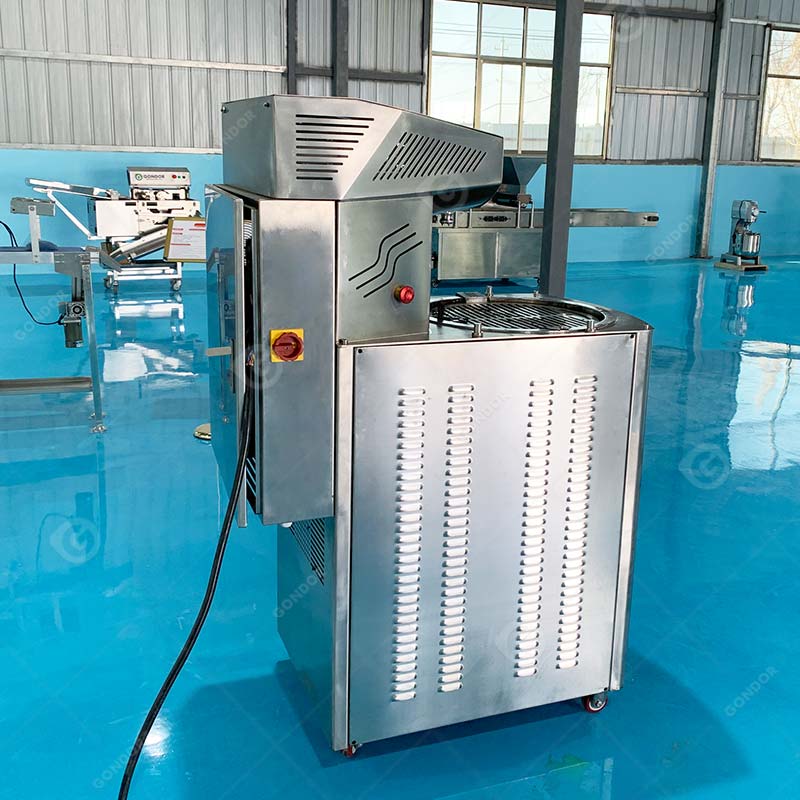

Vertical Chocolate Tempering Machine Overview
The vertical chocolate tempering machine is a high-performance piece of equipment specially designed for chocolate production, which combines advanced technologies such as precise temperature control, uniform stirring, and intelligent operation, and can significantly improve the processing quality and production efficiency of chocolate. Whether it is a handmade chocolate workshop or an industrial production line, this machine can be perfectly adapted and become your ideal chocolate-making solution.
Commercial Automatic Vertical Chocolate Tempering Machine Specification
| Vertical Chocolate Tempering Machine | |||||
| Model | Voltage | Power | Capacity | Dimension | Weight |
| 10L | 220/380V 50Hz | 2kw | 25kg/h | 790*630*1210mm | 140kg |
| 25L | 220/380V 50Hz | 6kw | 80 kg/h | 1060*840*1780 mm | 360 kg |
| 60L | 380V 50Hz | 9kw | 200 kg/h | 1350*880*1780 mm | 360 kg |
| 100L | 380V 50Hz | 11kw | 300 kg/h | 1600*770*1100 mm | 430 kg |
Application Scope of the Automatic Tempering Machine

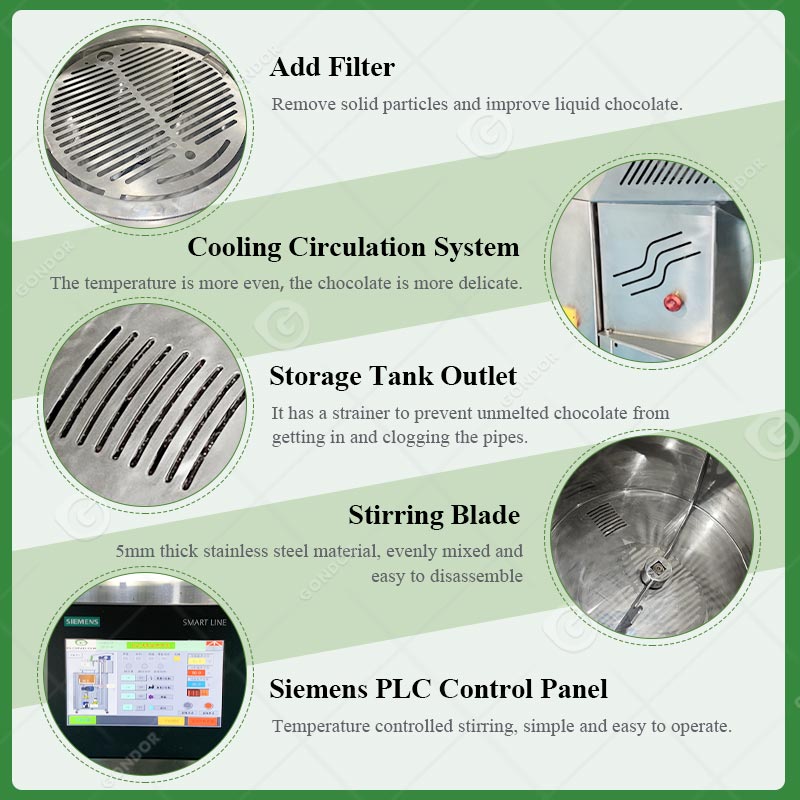

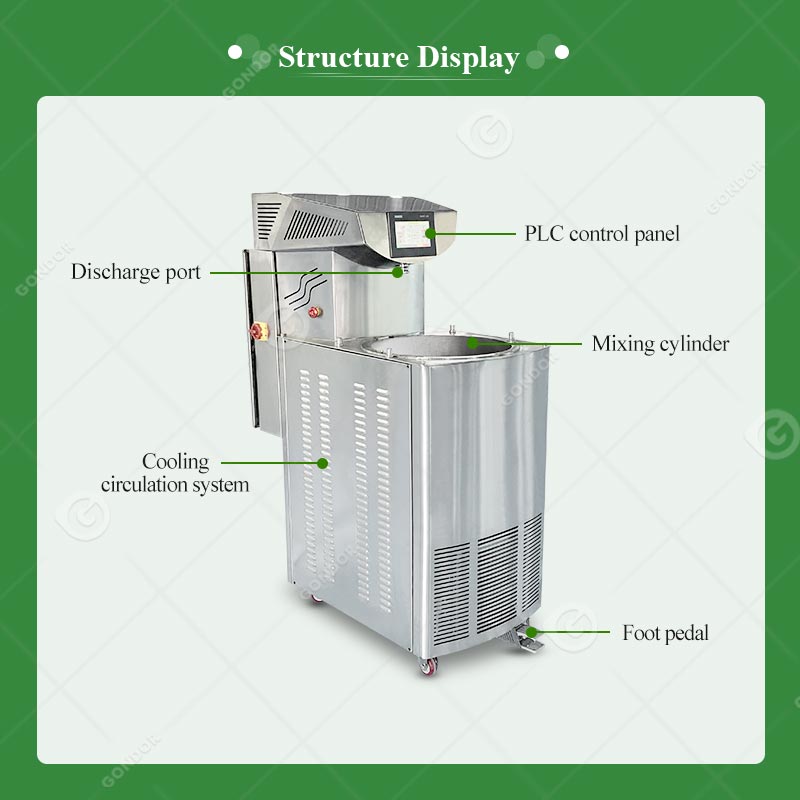

Core Components & Advantages of Commercial Chocolate Tempering Machine
Adopt a high-precision digital display temperature control system, combined with a cold and hot water circulation temperature control system, to ensure that chocolate is always kept at the ideal processing temperature to prevent overheating or abnormal crystallization.
Equipped with 5 mm-thick stainless steel stirring blades, it can realize uniform mixing in the whole process of heating, cooling, and storage, and ensure the chocolate is fine and smooth.

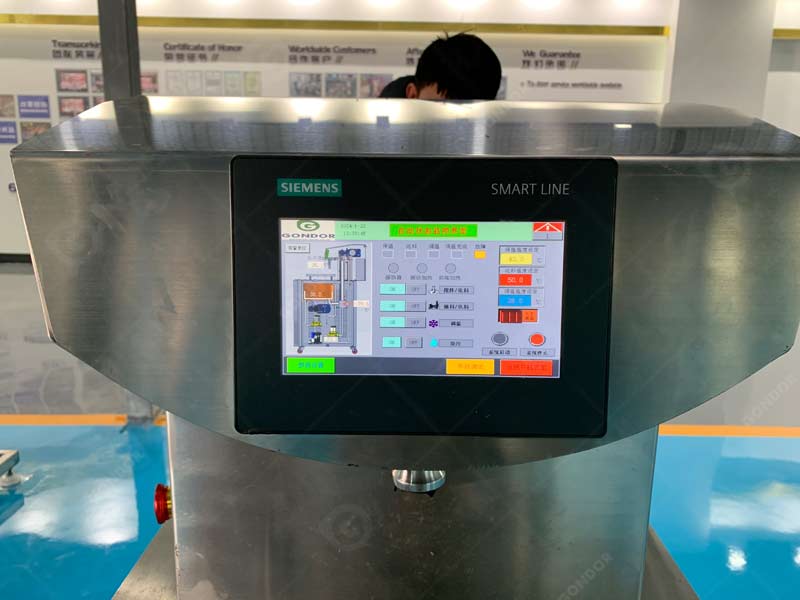

Siemens PLC touch screen, clear operation interface, intuitive temperature adjustment, and stirring parameters setting, suitable for operators of all levels of experience to use quickly.
With a modular structure, the mixing system can be quickly disassembled and cleaned, which effectively shortens the downtime and maintenance time and improves the production efficiency.

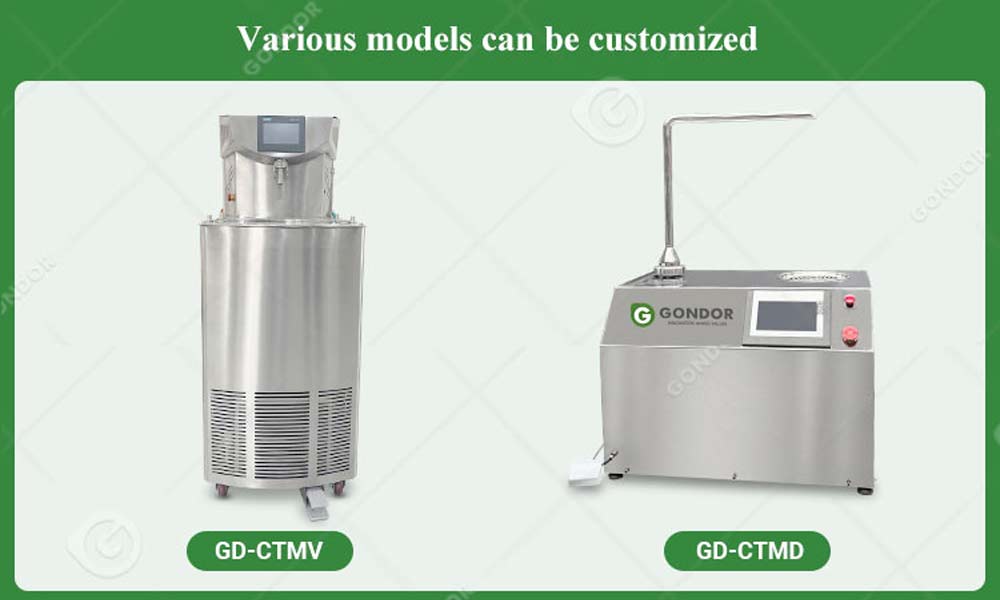

Provide a variety of capacity models, from small workshops to large food factories, to meet different output and space needs.

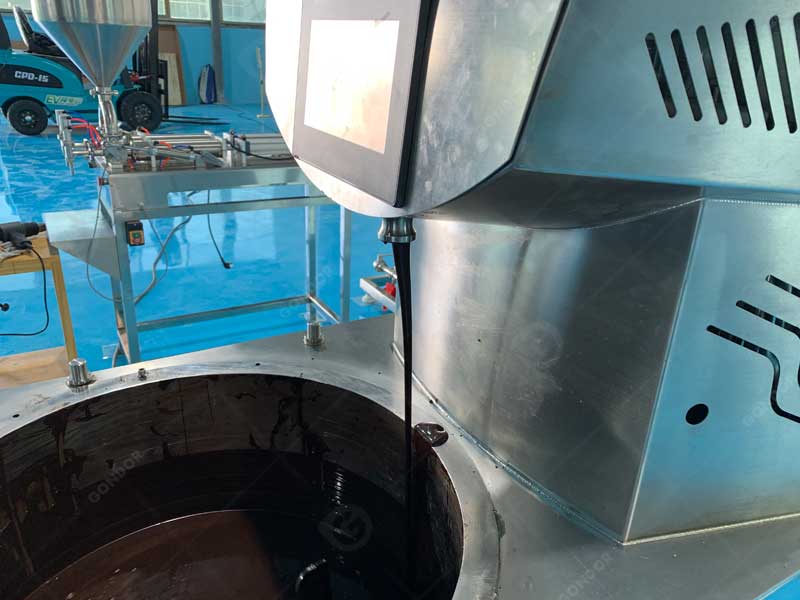

Equipped with a large-capacity mixing cylinder, a built-in filtration system, and a storage outlet with a filter screen to prevent particles from blocking the pipeline and ensure an efficient and smooth production process.
How a Vertical Tempering Machine Works
Ingredients: Pour chocolate blocks or chocolate chips into the tempering chamber.
Program: Select the corresponding preset program based on the type of chocolate (dark, milk, or white) or manually set the temperature.
Automatic Tempering: Start the machine and it will automatically complete the melting, cooling, and warming process.
Testing: Apply a small amount of chocolate to the tip of a knife or paper. It should solidify, become hard, and glossy within a few minutes, indicating successful tempering.
Use: Use the tempered chocolate for dipping, molding, truffles, or handmade candies.
Vertical Chocolate Tempering Machine VS Continuous Chocolate Tempering Machine
| Item | Vertical Chocolate Tempering Machine | Continuous Chocolate Tempering Machine |
| Structure | Vertical cylinder structure, chocolate flows from bottom to top | Horizontal or spiral conveyor structure, continuous chocolate flow |
| Operating Method | Multi-stage temperature control + scraper stirring, gradual cooling and crystallization | Continuous loading and unloading, automatic completion of the tempering curve |
| Temperature Control Accuracy | High (±0.1°C), suitable for demanding products | High (±0.1°C), strong stability |
| Productivity | Medium, suitable for small and medium-sized continuous production | High, suitable for industrial large-scale production |
| Food Capacity | Small, vertical structure saves space | Large, requires a conveyor belt or cooling tunnel |
| Applications | Handmade chocolate and fine chocolate production lines | Large-scale continuous production lines for industrial depositing, coating, and enrobing |
Create a New Experience of High-Quality Chocolate Production
