Precision Cocoa Bean Cracker for Zero Flavor Loss
Cocoa bean cracker machine is the key link to determine the success or failure of quality in the refined “Bean-to-Bar” handmade chocolate manufacturing. A medium-sized boutique chocolate manufacturer in Latin America once contacted our engineering team with a long-term production problem: for more than two years, they relied on semi-manual crushing and simple screening equipment. Despite purchasing top-grade cocoa beans, the residual cocoa shells were still frequently mixed into the refining tank. The high tannins and silica in the shells not only introduced astringency and bitterness to the famous dark chocolate, but also led to premature wear of expensive colloid mill blades. In addition, the original semi-manual air separation only processes about 15 kilograms of materials per hour, and a large number of high-quality Cocoa Nibs are mixed with shell fragments and wasted.
Engineering the Ultimate Cocoa Cracking Machine

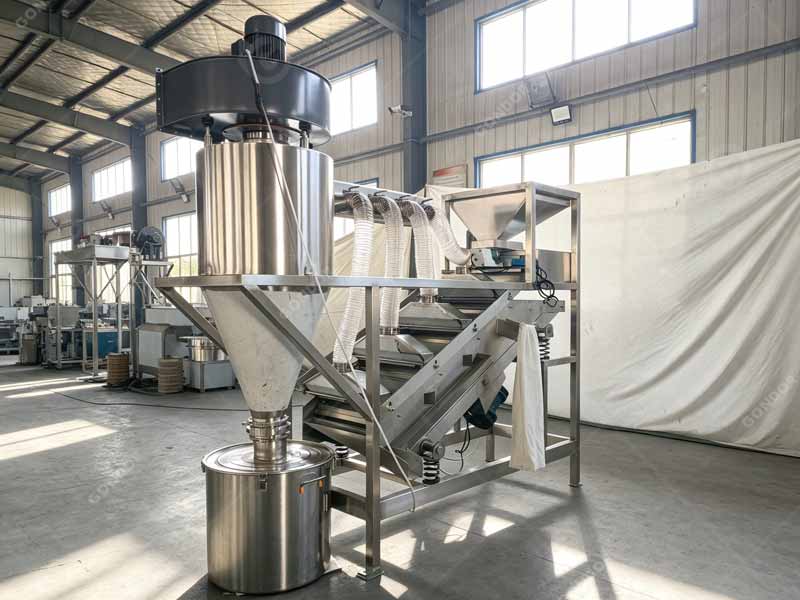

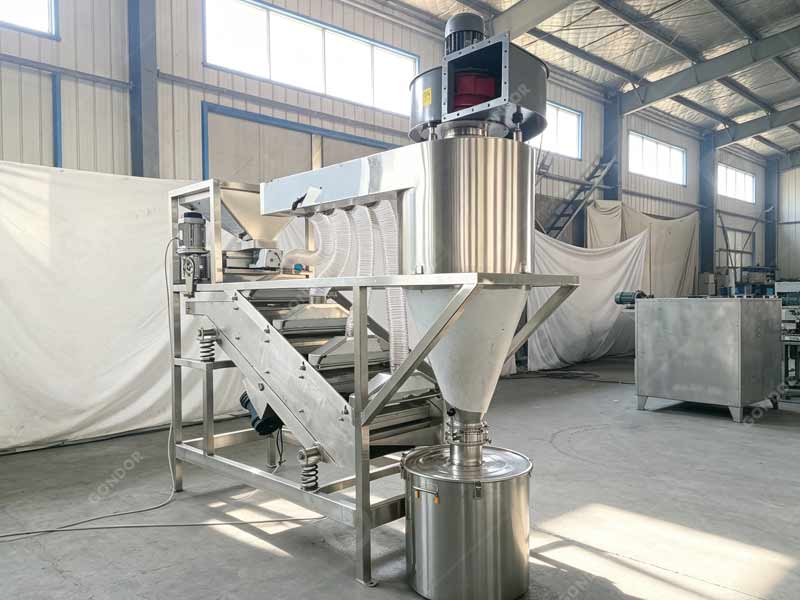

When the customer inquired Henan Gondor Machine Co., Ltd, our technical consultant didn’t just send the standard product manual, but asked the customer to send a small batch of roasted raw cocoa beans (including the mixed varieties of Cleoro and Closani Tario with different particle sizes) and carry out the physical test in the test workshop. In order to achieve efficient and smooth crushing and avoid excessive grinding of cocoa crumbs into useless fine powder, the engineering team recommended the flagship product-GD-CBPM2 cocoa bean crushing air separator. This professional cocoa cracking machine is specially designed to solve the double problems of “precise mechanical crushing” and “high-speed air separation”: the adjustable high-wear-resistant roller is used to accurately squeeze and crush the cocoa shell along the natural gap, and then the light cocoa shell is quickly separated from the heavy and high-quality cocoa particles through a multi-stage air separation system combined with accurately calibrated air flow and a three-layer vibrating screen. Customers highly approve of the results of on-site video connection test and transparent performance data.
How Our Cocoa Bean Cracker Machine Delivers 99%+ Separation
To understand why this unit performs so reliably under heavy daily use, let us look under the hood at its key mechanical components:
Large-size inclined plane design is adopted, which effectively prevents the material from jamming and bridging, and ensures that cocoa beans enter the crushing cavity continuously and evenly.
A dedicated 1.1kW cyclone instantly draws lighter shells into a sealed barrel via centrifugal force and negative pressure, keeping the workshop dry and dust-free.

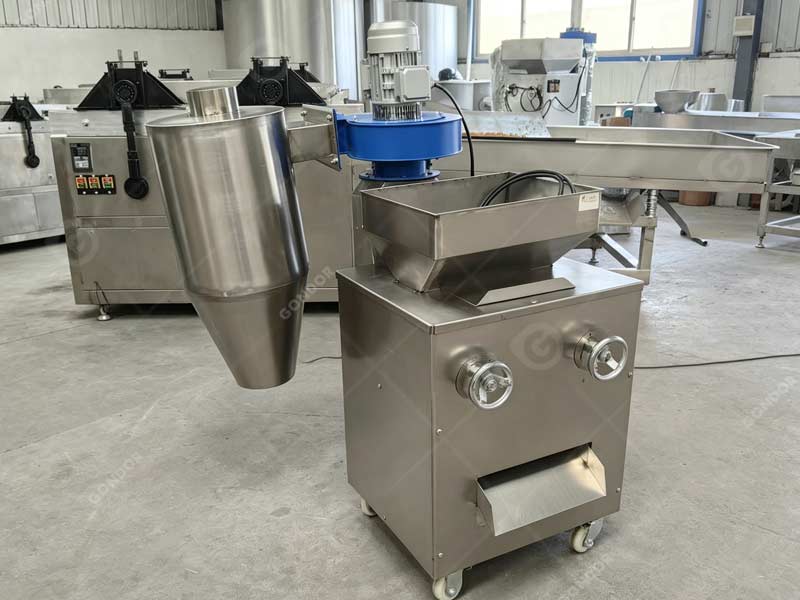

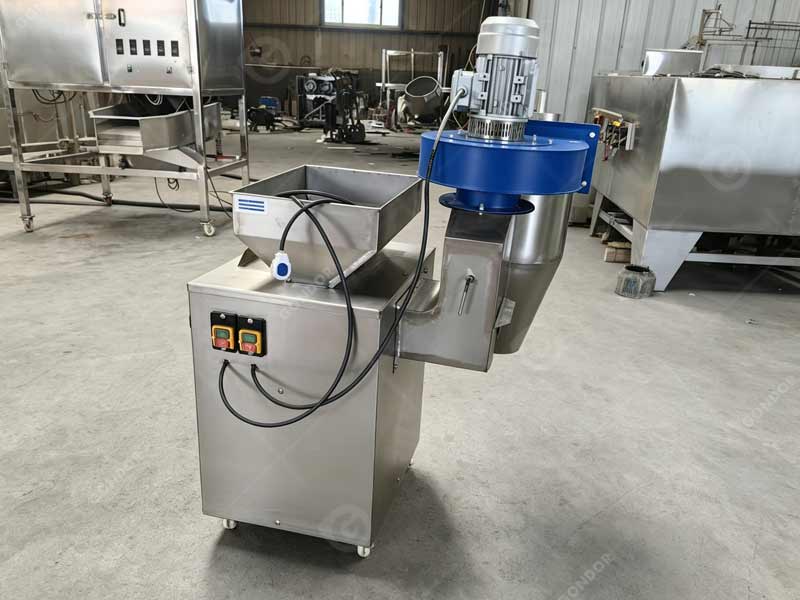

Driven by powerful motor, crushing components are equipped with micron-level adjustable roll-off gap. Operators can accurately adjust the gap according to the origin and particle size of cocoa beans, and maximize the retention of whole cocoa granules on the premise of avoiding the production of fine powder.
Driven by the balanced vibrating motor, the three-layer screen accurately classifies the crushed cocoa granules according to the particle size, and the uniform particle size provides a good material basis for subsequent baking and colloid mill refining.
The subtitle of each point is a little shorter.
Step-by-Step Processing Flow
Operating our cocoa bean cracker is straightforward and intuitive, requiring minimal operator training:
Community Insights
Gondor-Your Trusted Global Processing Partner
Henan Gondor Machine Co., Ltd, with more than 20 years of research and development and manufacturing experience in the field of food and beverage processing machinery, continues to create higher value for customers around the world. The company has a number of international authoritative certifications, such as ISO 9001, ISO 14001, ISO 45001, CE, BSCI and ETL, and implements the whole process quality monitoring management. Every equipment has undergone rigorous testing before leaving the factory. In terms of packaging, waterproof protective film is wrapped inside the equipment, and export standard wooden cases are used outside, which effectively reduces the collision damage in transnational transportation. After-sales service provides 24-hour online communication, standard spot 48-hour quick delivery, one-year warranty and remote technical support. Whether you are a refined handmade chocolate workshop or an industrial chocolate production line with large-scale production, Gondor machinery can provide you with high-quality equipment and engineering support-please contact the technical team at any time to obtain customized solutions and instant quotations!
